Your present location:Products >> Products >> Laser Die Cutting Machine >> 1500W Laser die board cutting machine
  • Name: 1500W Laser die board cutting machine
  • Model: GY-1218CH
  • Shelf time: 2017-08-12
  • Views : 637

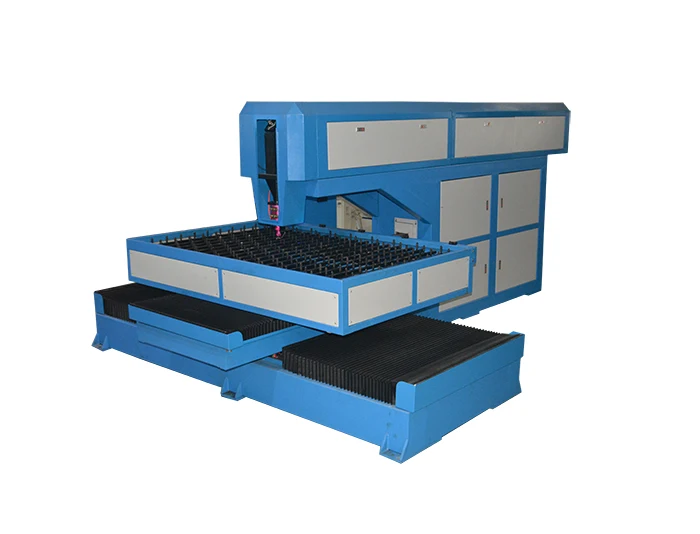

1500W Laser die board cutting machine

















Product Description

 About laser die cutting machine

1. Power:1000W laser equipment can cut through 18 to 22MM wood one time

2. Speed: maintain at a steady speed of 25 to 30 meters for one hour.

3. High-precision: This equipment uses ball screw transmission, precision can reach  ±0.1MM

4. High stability: the use of fixed optical path, wood moves while the laser head does not move, to avoid the  previous result of the laser head movement and the optical path shift.

5. Integrative optical system: short optical path, High beam quality, best cutting quality; Designed with imported  linear guide rail, precision ball screw transmission system, unique tracking controller to ensure consistent  quality of cutting.

6. Professional industrial control system.






Applicable materials:

Rotary & Flat die board laser cutting machine is special for cutting wood, plywood, MDF die board for the die making industry and packaging industry.



Applicable industry:

It is widely use in Corrugated Box Die Cutting industry, Packaging industry, Printing industry etc.







Technical Parameter:

Model No.

GY-1218CH

Processing scale

1200mm*1800mm

Net Weight

2500Kgs

Dimension(L*W*H)

3100*2100*1600mm

Laser Type

CO2 Sealed Laser Tube

Laser Power

1500W 2000W Single Head

Moving way

Fixed Laser Path

Driving Motor

High precision Ball screw rail and Servo Motor

Cutting Depth

6mm-22mm Plywood

Cutting Precision

±0.05MM

USB Port Connection

Yes

Operating Temperature

0-45°C

Mould Knife Thickness

0.45mm, 0.71mm,1.07mm…etc. controllable

Cutting Speed

25-30meters/hour

Protective Gas

Dry and Oil-free Air

Power Supply

Single-phase Electricity 220V±5% 60Hz 10A

Numerical Control Panel

LCD Screen, Light-touched Key-press

Software Supported

CorelDraw, Auto CAD, Photo Shop,

Graphic format support

PLT,DXF,BMP,JPG,GIF,PGN,TIF

EMS Memory

attached 32MB memory, can work under off-line condition

Assistant Equipments

Air Dryer, industrial chiller, Exhaust Fan, Computer System

Recommend spare parts

Laser Tube and Lens







Our Laser Die Cutting Machines Include following extra parts:

  • Industrial Water Chiller

  • Industrial Exhaust Fan

  • Professional User’s manual

  • CD installation video and Trainning video

Machine Maintenance


 Detailed maintains steps are mentioned in the User’s Manual!

  • Using Software

  • Adjust the optical laser path

  • Health And Safety Precautions



Our Services

 Our Service

a. One Year Warranty

b. 7days*12hrs online service(E-mail, Skype, WeChat, Whatsapp, Teamviewer)

c. Manual, Software, Video, CD

d. Free training in factory

e. Technician local service available





Workshop







Packaging & Shipping



.jpg

Manufacturing


Company Information



Customers Visiting

.jpg



Exhibitions

.jpg



FAQ



1)Is the machine cutting wood in different gap?

Yes, Software is from Germany, with auto focus cutting head, easy cut 2pt 3pt 4pt in one design.



2) What kinds of laser with this machine ? how long life span?

It is Hybrid CO2 laser generator, power up to 1000w 1500w 2000w, powerful cutting plywood in high speed.

It is feeding by He, N2 and co2 gas, life span up to 10 years, like auto car, after 3-5 years need to maintain for one time, maintaining fee around 5000USD.



3)How fast can machine cut the plywood 18mm ?

Normally 1000w can get 65m/hr speed for cutting 15mm die board.



4)how much total power of the whole machine ?

It will be around 15KW.



5)What accessories of the machine ?

Water Chiller, Exhaust Fan, Laser Generator, Control system.



6) What will be the consumable parts of this machine ?

A. Focus lens life span 5000hrs.

B. Gas ( N2 20usd/m,  He 300usd/m,  Co2 1usd/m )



7) Do you have engineer for local installation in my factory ?

Yes, we will send engineer to your for installation and training if you carrie round trip air tickets and accommodation fee, free training in our factory.



8) Can I come to you for Die manual accessories and materials?

YES, we have full solutions of the laser die cutting, both the flat dies and rotary dies, it is our pleasure to help you.



If more questions, please feel free to contact with us.



 Looking for agents all over the world!

Any questions, welcome to contact us!






Maggie Wang
Guangzhou Great Year Laser Technology Co.,Ltd.
m: +86 150 8808 8029
w: www.gdgylaser.com  e: laser@gdgylaser.com


Model GY-1218CH
Laser Power  400W 600W 1000W 1500W 2000W
Gas of Laser Co2
Working Area 1200*1800mm
Positioning Accuracy  0.01mm
Cutting Accuracy  0.03mm
Transmitting system 3 axis Ball screw rail
Cutting Slit 2PT 3PT
Cutting Thickness 6MM 18MM  22MM
Support Software AUTOCAD, CORELDRAW
Support Format PLT, DXF, DSF, AI
Machine Voltage 220V±10% 50HZ, Gross Power: 10KW
Working Temperature  0℃-45℃  (No Condensation)
Working Humidity  5-95%
Cooling way of Laser Water Cooling
Machine Weight  1T
Demension  Machine: 300*220*150 cm
water chiller: 70*55*90cm
